الخيوط مغزل السكتة الدماغية أداة قصير نوع الضابط اليد برشام الجوز

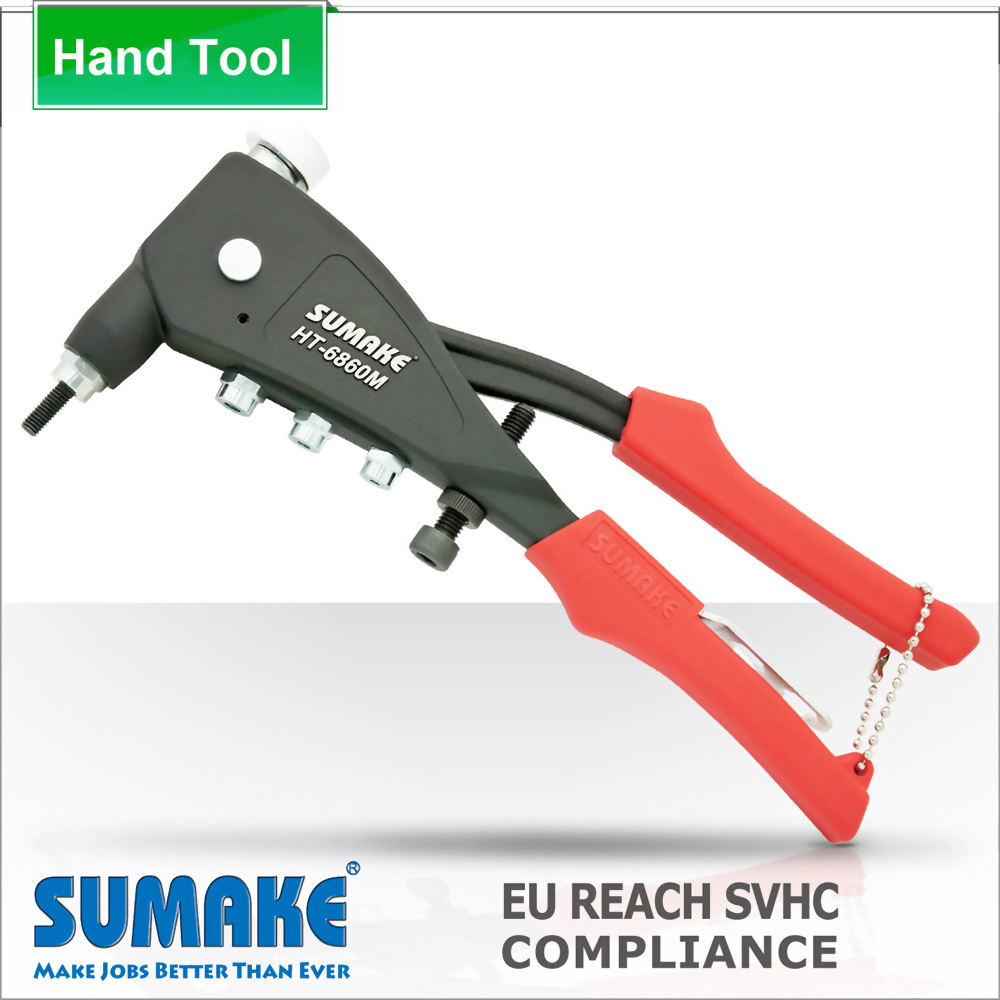

Model #HT-6860M
Model #HT-6860S
** Industrial Class **
|
Model # |
HT-6860M |
|
Capacity (Alum./Steel) |
M3x0.5, M4x0.7, M5x0.8, M6x1.0 |
|
Capacity (Stainless Steel) |
M3x0.5, M4x0.7, M5x0.8 |
|
Length |
258mm (10.2”) |
|
Weight |
0.64 kgs (1.4 lbs) |
|
Model # |
HT-6860S |
|
Capacity (Alum./Steel) |
#6-32, #8-32, #10-24, #10-23, #1/4-20 |
|
Capacity (Stainless Steel) |
#6-32, #8-32, #10-24, #10-23 |
|
Length |
258mm (10.2”) |
|
Weight |
0.64 kgs (1.4 lbs) |
Packing: 20pcs/Ctn/15.5kgs/1.1 Cuft
Features:
- Forged Steel Upper Handle with advanced heat threaded.
- High Grade Steel Alloy Key Parts (Threaded Mandrels, Fulcrum Pin, etc.) for strength and durability.
- Auto-Open Design™ for easy operation.
- Stroke Adjuster Design™: To ensure Rivet Nut installed firmly and Rivet Nut Thread built up securely.
- Eco-Friendly Design™, EU REACH SVHC Compliance, PAHs-Free (Non-Toxic to Hand Skin) Plastic Hand Grips.
- Traditional Short Type Threaded Mandrel
- With 4 Interchangeable Nosepieces (Size mark engraved).
Application:
The tools expand and lock a hollow rivet by pulling a mandrel through the rivet body. The mandrel is then broken off and discarded, leaving the expanded rivet to secure the work pieces.
The plier type of riveter commonly used for light duty applications and
smaller, aluminum rivets. These tools have a jaw mechanism that retracts the
rivet mandrel via a plier type handle arrangement. To complete the riveting
operation the two handles have to be squeezed closed several times, releasing
the tension after each closure to move the jaws down the mandrel. Once the
mandrel has reached its pre-stressed cut point, it breaks off and is ejected
from the back of the jaw assembly.
